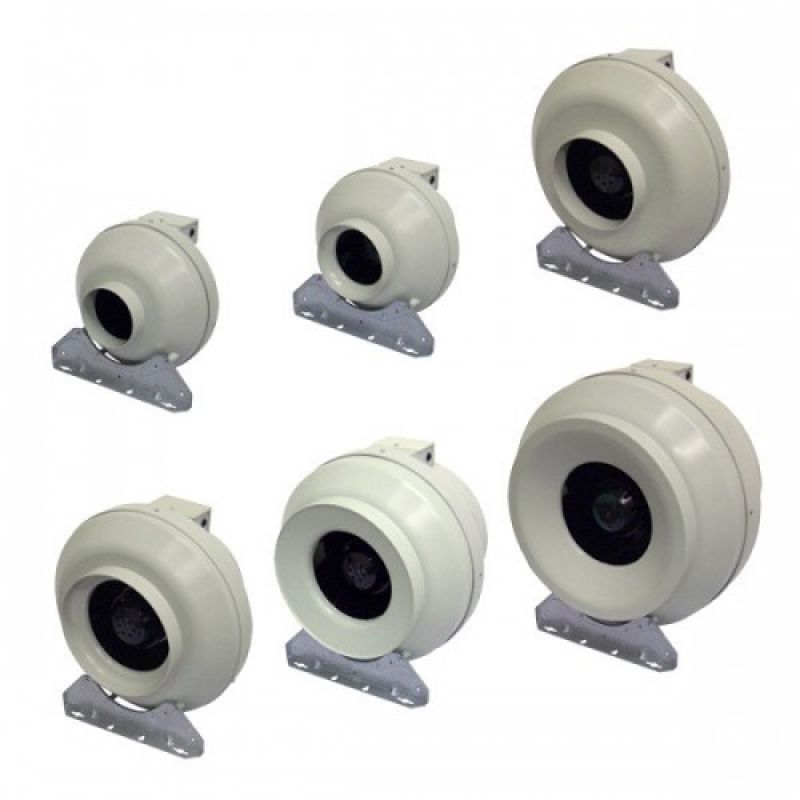

Systemair RVK Fans

The RVK fan is an industry staple.

Ideal for use as an extractor or intake fan. Suitable to ventilate wet or damp rooms, versatility makes this product a consistent bestseller. Easy to connect and simple to install in virtually any position, RVK fans feature an energy efficient backwards curved motorised impeller and can be powered directly from the mains or via a speed controller to regulate speed and airflow.

The fibreglass and polypropylene casing makes the fans incredibly robust whilst the dynamically balanced impeller reduces vibration and noise making the RVK quiet, yet powerful, securing it as a favourite with growers from entry level to experienced.

Designed with safety in mind the product features thermal protection to prevent overheating and an IP44 rated terminal box. Extremely reliable and maintenance free, the RVK fan offers the quality synonymous with German manufacture, and this is supported by a two year warranty.

Comes with 2.5mtr IEC cable and plug.

Flange Size - Length - Max Air Flow  - Max Air Flow with Filter - Pressure Drop with Filter

 mm               mm            m3h                       m3h                             Pa

100 A1            230            211                        140                             54

125 A1            230            244                        165                             55

125 L1            230            368                        260                             100

150 A1            230            423                        320                             115

150 L1            230            737                        595                              115

200 A1            230            827                        760                              52

200 L1            230            1073                      1000                             50

250 A1            230            863                        725                              110

250 L1            230            1134                      980                               120

315 A1            230            1364                      1200                             150
