Controller 69

Controller 69, Independent Programs for Four Devices, Dynamic Temperature, Humidity, Scheduling, Cycles, Levels Control, Data App

A digital controller designed to equip AC Infinity devices with smart controls to produce the optimal enviroment. Control up to four devices from fans to grow lights and provide each with their own independent programming.
Automate devices to dynamically change speed and brightness levels in response to temperature and humidity.
Additional programming includes grow cycles, scheduling, timers, minimum levels, and custom transitions.

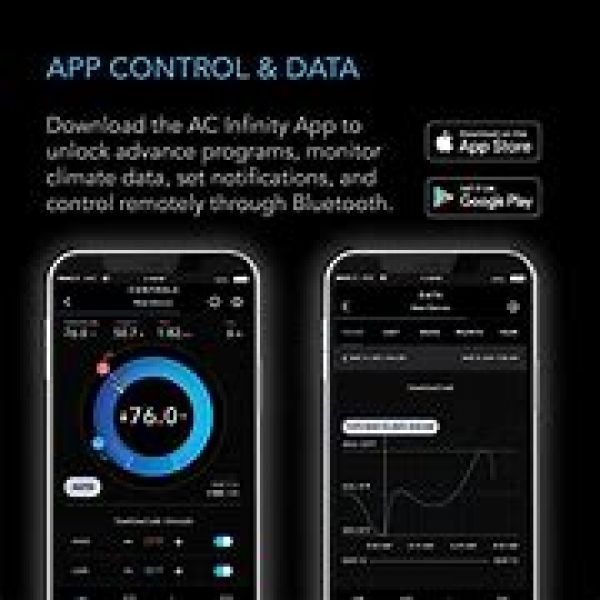

Connect with our app via Bluetooth to unlock advance programs, set alarms, notifications, and view climate data.

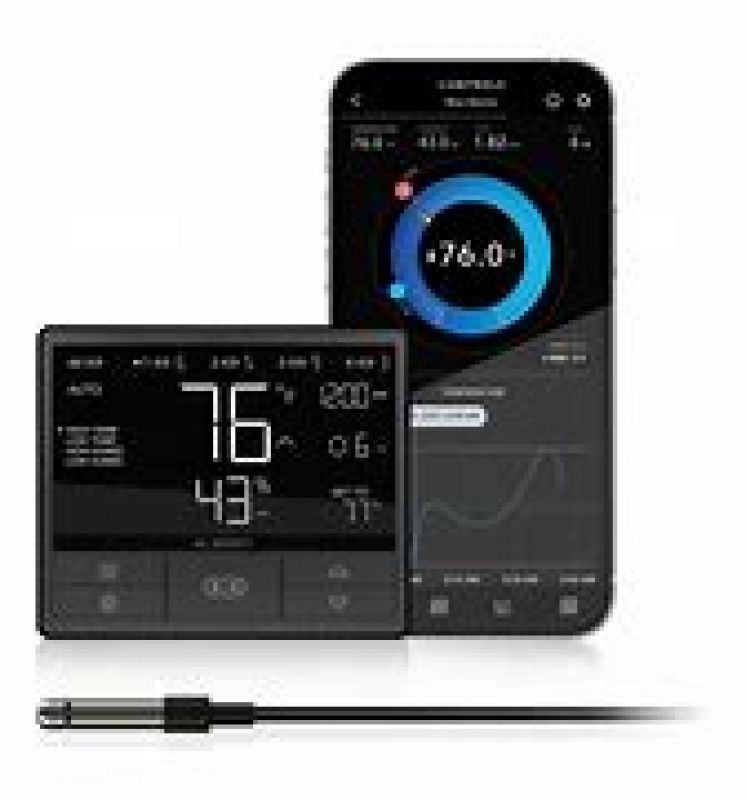

A next-gen controller designed to provide AC Infinity devices with smart programming to produce the most optimized environment. This central command unit connects with up to four different devices from fans to lights to provide each with independent climate and time-based programming. The backlit display reads temperature in Fahrenheit or Celsius and can be switched off while programs run in the background. Built with a kickstand and includes hardware to be hung on walls. The 12-foot sensor probe with thermal-alloy head accurately detects current temperature and humidity conditions. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

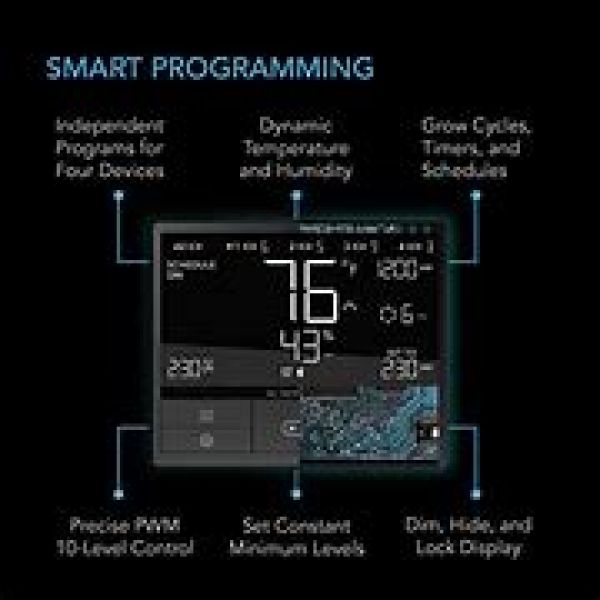

Connect up to four devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature and humidity. Set minimum baseline levels that your devices will run at constantly, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

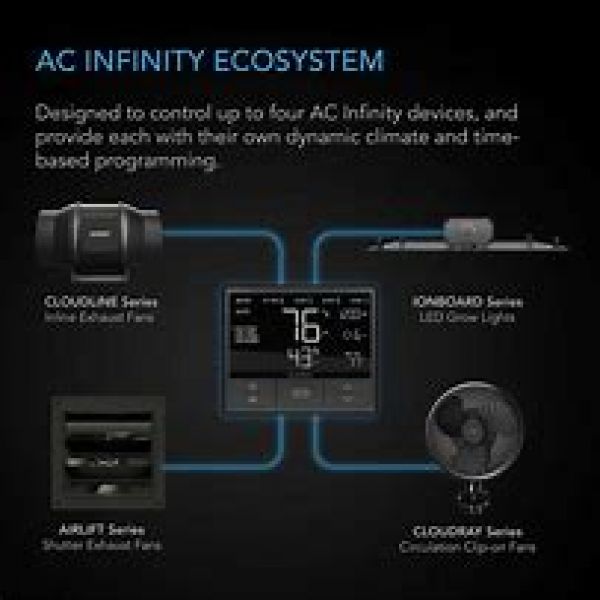

Devices within the UIS™ ecosystem which includes all AC Infinity LED grow lights and EC fans are compatible. Includes two adapter dongles to connect with EC-motor fans built with 4-pin Molex connectors. Compatible AC Infinity series devices include:

CLOUDLINE Series – Inline Duct Fans
AIRLIFT Series – Shutter Exhaust Fans
CLOUDRAY Series – Clip-on Circulation Fans
CLOUDLIFT Series – Floor Wall Circulation Fans
IONGRID Series – Halo LED Grow Lights
IONBOARD Series – LED Grow Light Boards

   Product Identification
  Manufacturer AC Infinity Inc.
  Product Name CONTROLLER 69
  Product Model CTR69A
   UPC Code 819137022652
   Product and Mounting Dimensions - Controller
   Total Dimensions
   5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
   Hole to Hole Distance
   4.71 x 2.64 in. (12.0 x 6.7 cm)
   Screw Hole Size
   Ø 0.119 in (Ø 0.3 cm)
   Display Size
   3.5 x 1.4 in. (9 x 3.5 cm)
   Sensor Probe Length
   144 in. (12 feet)
   Product Performance and Technical Specs
   Maximum Devices Controlled
   Max Power Supported
   10 W
   Programming Temperatures
   32 to 140°F
   Operating Voltage
   9 to 18V
   1 W
   0.1 A
   Power Input
   12V from Device
   Operating Humidity
   35 to 85% RH
   FCC Cert. (Whole Product)
